Movable Stainless Steel Water Filter Housing Honey Stainless Steel Filter Vessel

Name: Movable Stainless Steel Water Filter Housing Honey Stainless Steel Filter Vessel
Brand: YATE
Price: 1 USD

Wholesale Movable Stainless Steel Water Filter Housing Honey Stainless Steel Filter Vessel from china suppliers

Brand Name : YATE

Model Number : Mobile filter

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Set/Sets per Day

Delivery Time : 7 days

Packaging Details : wooden case

Working Pressure : 0.6Mpa

Min. Filtration Precision : 0.5 μm

Usage : Liquild Filter

Filter Material : PP/PE

Material : Stainless Steel 304

Size : Customized Size

Type : Single bag / multiple bags

Video outgoing-inspection : Provided

Contact Now

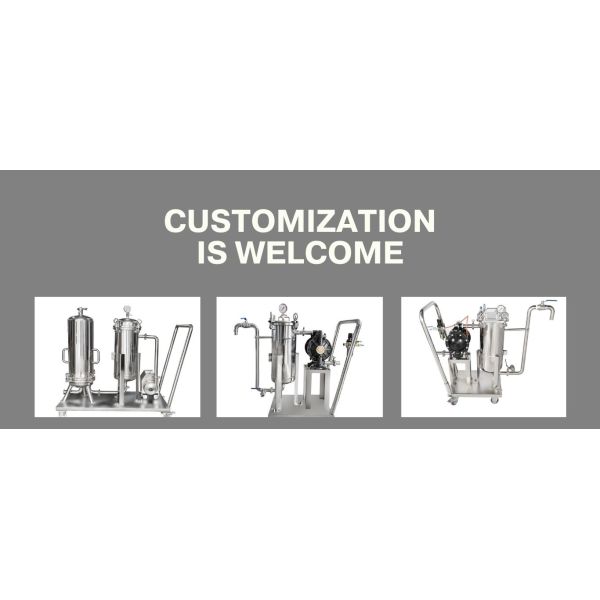

Customized Stainless steel 304/316L material removable filtration system

Movable Stainless Steel Water Filter Housing Honey Stainless Steel Filter Vessel

Model	Filter bag#	Filter bag Qty	Firltration area(m²)	Connection	Max. Flow (m³/h)	Working pressure(MPa)
YT-1D	1#	1	0.25	DN50	20	0.5-1.6
YT-2D	2#	1	0.5	DN50	40	0.5-1.6

Three Stage Filter Unit

◆1.The first filter is bag filter, which can be customized for 1-24 bags, with a filtering accuracy of 0.2-500 microns, and intercepts large particle impurities.
◆2.The second filter is cartridge filter, can be customized 3-100 cores, filtration accuracy 1-300 micron, fine filtration.
◆3.The third stage is the folding filter element filter, high precision filtration, reduce turbidity, filtration accuracy 0.1-300 micron.

Two Stage Filter Unit

◆1.The first filter is bag filter, which can be customized for 1-24 bags, with a filtering accuracy of 0.2-500 microns, and intercepts large particle impurities.
◆2.The second stage is the folding filter element filter, high precision filtration, reduce turbidity, filtration accuracy 0.1-300 micron.

Single Bag And Pneumatic Diaphragm Pump Unit

◆The unit is composed of a single bag filter and pneumatic diaphragm pump. Group to be used for paint, resin, glue and other high viscosity liquid filtration, filling.

◆The unit is composed of a top - in single - bag filter and an electric pump. The top cover of the jacking bag filter is a casting cover with better sealing and bearing capacity.

Advantages of bag filter and cartridge filter

◆ High capacity, small size
◆ Easy to replace the filter bag, labor saving
◆ After cleaning the filter bag can be used repeatedly to save cost
◆ Filter precision reached 0.5-500 μm
◆ Lower leakage risk ensures high quality
◆ High working pressure, low pressure loss, low operation cost and energy saving
◆ Wide application, flexible use, various installation model for choice.
